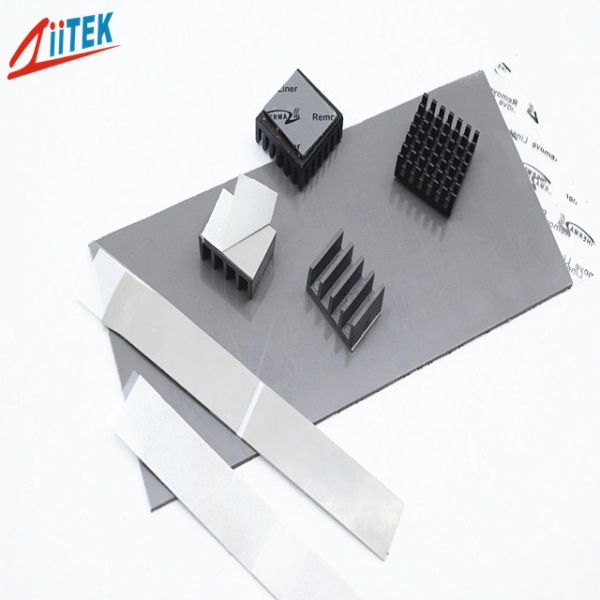

Thermal Conductive Pad Featuring Balanced Softness And 3W Thermal Conductivity For Heat Transfer And Component Protection

  • 1
  • 2

MOQ : 1000pcs

Delivery Time : 3-5work days

Application : For Heat Transfer

Keywords : Thermal Conductive Pad

Model Number : TIF100-30-11ES

Thickness : Available In Varies Thicknes

Payment Terms : T/T

Hardness : 12 Shore 00

Price : Negotiation

Specific Gravity : 3.15 g/cm³

Supply Ability : 10000/day

Breakdown Voltage(V/mm) : ≥5500

Brand Name : ZIITEK

Products name : Thermal Conductive Pad Featuring Balanced Softness And 3W Thermal Conductivity For Heat Transfer And Component Protection

Certification : UL and RoHs

Thermal conductivity : 3.0W/m-K

Place of Origin : China

Construction & Compostion : Ceramic filled silicone elastomer

Packaging Details : 1000pcs/bag

Contact Now

Thermal Conductive Pad Featuring Balanced Softness And 3W Thermal Conductivity
The TIF®100-30-11ES Series is a thermal pad specifically designed to tackle high-level cooling challenges in environments sensitive to extreme mechanical stress. It combines high thermal conductivity with near-fluid softness, ensuring perfect filling of the contact interface even under ultra-low mounting pressure, completely eliminating air thermal resistance, and providing superior thermal solutions and physical protection for the most precise and high heat flux electronic components.
Key Features
  • High thermal conductivity
  • Extremely soft with low compression stress to protect sensitive components
  • Self-adhesive without the need for additional surface adhesives
  • Good insulation performance
Applications
  • Power tools
  • Network communication products
  • Electric vehicle batteries
  • Computer CPU/GPU Cooling
  • New energy vehicle power systems
  • Heat pipe thermal solutions
  • Memory Modules
  • Mass storage devices
  • Automotive electronics
  • Set top boxes
Typical Properties of TIF®100-30-11ES Series
Property Value Test Method
Color Dark Gray Visual
Construction & Composition Ceramic filled silicone elastomer ******
Density (g/cm³) 3.15 ASTM D792
Thickness Range (inch/mm) 0.020~0.030 (0.50~0.75) | 0.040~0.200 (1.00~5.00) ASTM D374
Hardness (Shore 00) 12 ASTM 2240
Continuous Use Temp -40 to 200℃ ***
Breakdown Voltage (V/mm) ≥5500 ASTM D149
Dielectric Constant @1MHz 7.0 ASTM D150
Volume Resistivity ＞1.0×10¹² Ohm-meter ASTM D257
Thermal Conductivity (W/m-K) 3.0 ASTM D5470 / ISO22007
Fire rating V-0 UL 94 (E331100)
Product Specifications

Standard Thickness: 0.020" (0.50 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)

Standard Size: 16"×16" (406 mm×406 mm)

Component Codes

Reinforcement Fabric: FG (Fiberglass)

Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)

Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)

The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
