Silicone Foam Gasket Designed For Easy Application Providing Sealing And Insulation In Electrical And Mechanical Systems

  • 1
  • 2

Compression Set (%)@100℃ : ＜3.0

MOQ : 1000PCS

Delivery Time : 3-7 Work Days

Color : Gray

Model Number : Z-Foam800-10EC

Tensile strength (MPa) : ≥0.3

Payment Terms : T/T

Construction : Silicone rubber

Price : 0.1-10 USD/PCS

Keywords : Silicone Foam Gasket

Supply Ability : 100000PCS/Day

Products name : Silicone Foam Gasket Designed For Easy Application Providing Sealing And Insulation In Electrical And Mechanical Systems

Brand Name : Ziitek

Density(g/cm³） : 0.20

Certification : RoHs

Application : For Easy Application Providing Sealing And Insulation In Electrical And Mechanical Systems

Place of Origin : China

Packaging Details : 1000PCS/bag

Contact Now

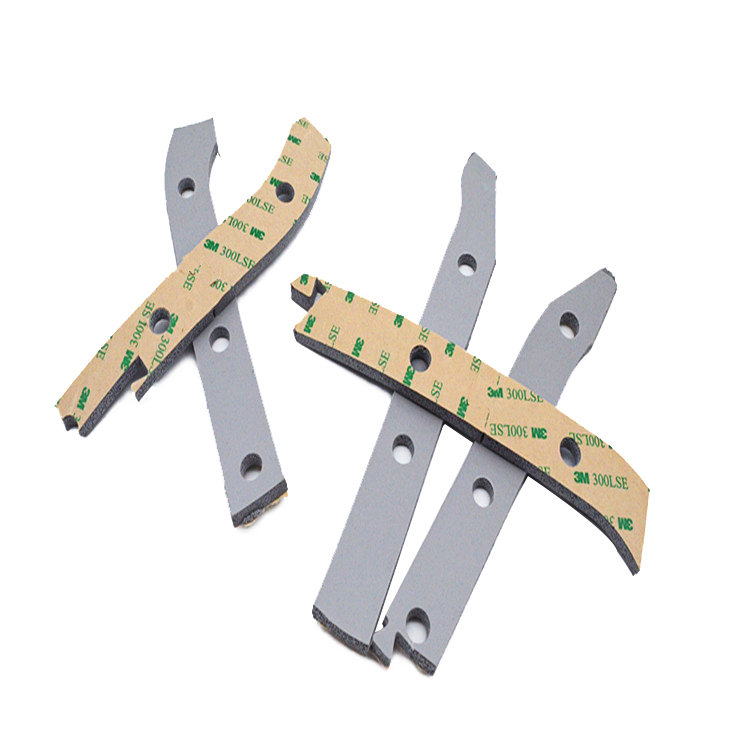

Silicone Foam Gasket for Electrical and Mechanical Systems
Product Overview

Z-Foam®800-10EC Series foamed silicone is a foam material formed by the foaming of polysiloxane, retaining the excellent properties of silicone polymers while possessing the characteristics of foam materials. This combination makes it ideal for various high-performance applications requiring sealing, vibration damping, cushioning, sound insulation, protection, insulation, fireproofing, and noise absorption.

Key Features
  • Resistant to mechanical fatigue
  • Resistant to ozone and ultraviolet rays
  • Good insulation properties
  • Excellent flame retardant performance
  • Excellent resistance to compression set and creep
Applications
  • Communication Equipment
  • Smart Devices
  • Cables and Optical Fibers
  • Airplanes, High-Speed Trains, Automobiles
  • Telecommunication and Electrical Cabinets
Technical Specifications of Z-Foam®800-10EC
Properties Value Test Method
Color Gray Visual
Construction Silicone rubber ******
Density (g/cm³) 0.20 ASTM D1056
Compressive Stress (kPa) @25% 20±3 ASTM D1056
Compression Set (%) @100℃ <3.0 ASTM D1056
Tensile Strength (MPa) ≥0.3 ASTM D412
Elongation At Break (%) ≥90 ASTM D412
Water Absorption (%) ≤5.0 ASTM D570
Volume Resistivity (Ω*cm) ≥1.0 x 10¹⁵ ASTM D257
Recommended Operating Temperature (℃) -55~200 -
Flame Rating V-0 UL94 (E331100)
Standard Sheet Size: 20" x 49" (500mm x 15m)
Z-Foam® Series can be die-cut into different shapes.
For different thickness options, please contact us.
